L1400M tape library

The L1400M helps you save money by better aligning the cost of protecting your data with its value. And with its ability to seamlessly support a wide range of drive technologies, the L1400M enables you to quickly respond to changing business needs.

The L1400M tape library is designed to meet your evolving data protection and archiving needs in larger, distributed open systems environments. Its flexibility, scalability and reliability help mitigate business risks in environments with fast and unpredictable data growth. And the L1400M supports VolSafe® secure media technology to further help you meet your compliance needs.


Business Benefits
   The L1400M improves bottom-line efficiency and reduces storage management complexity. The library redefines flexibility for critical business needs, such as site-wide disaster recovery, fixed-content distribution, enterprise archiving and storage consolidation.
   The L1400M tape library helps you lower your total cost of ownership and reduce costs. You can buy the capacity you need, when you need it, to better manage change, data growth and tight budgets.

More Information
Images | Features and IT Benefits | Pricing | Specifications
Related Information
Product CollateralTechnical Documents
L1400M tape library offering collateral (pdf 167K Jun 2005)
L1400M tape library collateral
Compatibility matrix for tape libraries and drives (pdf 1.3MB Mar 2005)


Ask an expert
Pre-Sales Technical Questions
1-800-275-4785
01-303-673-2800

Product Support
1-800-525-0369

How to Buy
Contact us online
Or call
1-800-275-4785
01-303-673-2800
For tape media purchases:
1-877-STK-TAPE

Related offerings
T9940 tape drives
T9840 tape drives
LTO Ultrium tape drives
SDLT tape drives
Implementation
Support
Warranties
Features and IT BenefitsTop

Improve data protection and backup success rates
With its powerful monitoring software, the L1400M enables you to monitor your entire backup infrastructure—drives, library assets, switches and backup applications—centrally from a single console. You can easily identify the specific reasons for any backup failure and more effectively analyze, tune and manage your storage infrastructure.

Easily grow to meet increasing storage demands
The L1400M’s continuous capacity capability allows you to scale non-disruptively, without downtime, from 200 to 678 slots in 100-slot increments using a software key. The second library also scales non-disruptively.

Increase flexibility
The L1400M library solution is all about flexibility — the flexibility to quickly grow, adapt and manage change as new business challenges arise. Not only can you increase capacity without interrupting service, but the library can be seamlessly shared across UNIX, Linux and Windows NT environments as well as multiple backup applications. And the L1400M lets you select the right data protection or archiving technology for the right application. Choose among fast-access T9840, high-capacity T9940 or mid-range LTO/SDLT tape drives.

Maximize asset utilization with logical partitioning and drive sharing
The L1400M’s soft partitioning capabilities allow you to dynamically manage, create and change up to six logical partitions with no library downtime. Asset utilization increases since it’s easy to reclaim unused capacity from partitions. And flexible drive assignment and the ability to share drives between partitions helps you further maximize utilization and minimize costs.

Enhance reliability and accessibility
The L1400M helps you minimize or eliminate downtime and service interruptions with the advanced reliability, availability and serviceability (RAS) features that StorageTek libraries are known for. Dynamic drive upgrades, hot-swappable components and continuous calibration of robotics are just a few of these features.

Reduce storage management complexity
The L1400M library solution is packaged with the hardware and software you need and provides advanced library control, management and monitoring capabilities.

Increase value with exceptional storage services
Professional Services from StorageTek can help you improve your current storage infrastructure with an L1400M data protection and archiving solution. Offerings include assessment, design, implementation and migration services. In addition, Professional Services and StorageTek-certified partners offer training and support services.


PricingTop

Pricing varies depending on configuration and selected options. Product pricing does not include associated implementation service costs. Contact the "How to buy" help desk at 1-800-275-4785 (01-303-673-2800) for more information.

Request More Information

Product images Top

Click on an image below to enlarge it.

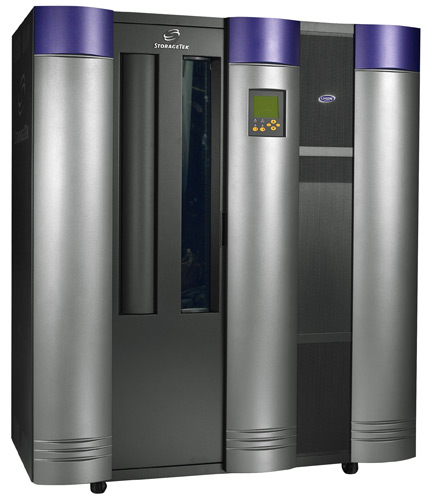

L1400M tape library


SpecificationsTop
Performance

Throughput per hour, native (uncompressed):T9840B (12 drives, 19 MB/sec) – 820.8 GB/hr (single-frame)
LTO Gen 3 (40 drives, 80 MB/sec) – 11.52 TB/hr
SDLT 320 (20 drives, 16 MB/sec) – 1.152 TB/hr (single-frame)
SDLT 320 (40 drives, 16 MB/sec) – 2.304 TB/hr (dual-frame)
SDLT 600 (20 drives, 36 MB/sec) – 2.59 TB/hr (single-frame)
SDLT 600 (40 drives, 36 MB/sec) – 5.18 TB/hr (dual-frame)
T9840B (24 drives, 19 MB/sec) – 1.64 TB/hr (dual-frame)
T9840C (12 drives, 30 MB/sec) – 1.296 TB/hr (single-frame)
T9840C (24 drives, 30 MB/sec) – 2.592 TB/hr (dual-frame)
T9940B (12 drives, 30 MB/sec) – 1.296 TB/hr (single-frame)
T9940B (24 drives, 30 MB/sec) – 2.592 TB/hr (dual-frame)
LTO Gen 2 (20 drives, 35 MB/sec) – up to 2.52 TB/hr (single-frame)
LTO Gen 2 (40 drives, 35 MB/sec) – up to 5.04 TB/hr (dual-frame)
LTO Gen 3 (20 drives, 80 MB/sec) – 5.75 TB/hr
Audit time:<4 min
Average cell to drive time:4.0 sec
Capacity

Capacity, native (uncompressed):T9840B (20 GB/cart) – 13.56 TB (single-frame)
LTO Gen 3 (200 GB/cart) – 542.4 TB (dual-frame)
SDLT 320 (160 GB/cart) – 108.48 TB (single-frame)
SDLT 320 (160 GB/cart) – 215.04 TB (dual-frame)
SDLT 600 (300 GB/cart) – 203.4 TB (single-frame)
SDLT 600 (300 GB/cart) – 406.8 TB (dual-frame)
T9840B (20 GB/cart) – 26.88 TB (dual-frame)
T9840C (40 GB/cart) – 27.12 TB (single-frame)
T9840C (40 GB/cart) – 53.76 TB (dual-frame)
T9940B (200 GB/cart) – 135.6 TB (single-frame)
T9940B (200 GB/cart) – 268.8 TB (dual-frame)
LTO Gen 2 (200 GB/cart) – 135.6 TB (single-frame)
LTO Gen 2 (200 GB/cart) – 268.8 TB (dual-frame)
LTO Gen 3 (200 GB/cart) – 271.2 TB (single-frame)
Number of cartridge slots:200, 300, 400, 500, 600, 700 (single-frame)
800, 900, 1000, 1100, 1200, 1300, 1344 (dual-frame)
Number of tape drives / types:1–12 T9840 and T9940 drives (single-frame)
1–20 LTO Gen 2 and 3, SDLT 320 and 600 drives or a combination (single-frame)
1–24 T9840 and T9940 drives (dual-frame)
1–40 LTO Gen 2 and 3, SDLT 320 and 600 drives or a combination (dual-frame)
Cartridge access port (CAP):Standard 20-cartridge-slot CAP. Second CAP for additional 20 cartridges optional
Pass-through-port (PTP):2-cartridge transport mechanism (dual-frame)
Availability

Mean exchanges / swaps between failure (MEBF/MSBF):2,000,000
Mean time between failures (MTBF):360,000 hr (full operation)
Mean time to repair (MTTR):<30 min
Non-disruptive serviceability:Hot-swappable drives with power supply and fan, plus Ethernet and serial ports for diagnostics and reporting; optional universal power supply
Compatibility

Supported host platforms:UNIX, Windows NT, Novell, Linux
Robotics control interfaces:SCSI-3 media changer command set, 2-GB Fibre Channel
Any Cartridge Any Slot™ technology:Simultaneous non-partitioned support of multiple tape and media types
Management

L-Series™ Library Admin software:Embedded Web-based library administration tool (optional)
Digital vision system:Unique digital vision camera system performs continuous calibration and reads bar codes
Operator panel:User-friendly configuration and diagnostic controls, status display and viewing window
Automatic clean:Dedicated cleaning cartridge slot for tape drive cleaning by library or software command
Automatic self discovery:Self-configures the drives, slots and CAP, also identifies drive and media types
Continuous automation calibration:No periodic maintenance or alignment required
Mechanical
Library
Height:72.0 in (182.9 cm)
Depth:37.5 in (95.3 cm)
Width:61.3 in (155.7 cm) (single-frame), 135.81 in (344.95 cm) (dual-frame)
Unit height:41.1u*
Weight:First frame 840.0 lb (381.0 kg) with expansion frame and covers plus second frame weight (single-frame) 761.0 lb (345.0 kg) without expansion frame — 840.0 lb (381.0 kg) with expansion frame and covers (dual-frame)
Pass through port
Height:7.0 in (17.8 cm) (dual-frame)
Depth:17.25 in (43.8 cm) (dual-frame)
Width:12.0 in (30.5 cm) (dual-frame)
Unit height:4u* (dual-frame)
Weight:92 lb (43 kg) (dual-frame)
Environmental

Relative humidity (operating):+59° to +90° F (+15° to +32° C)
Temperature (non-operating):+50° to +104° F (+10° to +40° C )
Relative humidity (operating):20% –80%
Relative humidity (non-operating):10% –95%
Power

Voltage:100–127 VAC, 200–240 VAC @ 50–60 Hz single phase (auto-ranging)
Library (operating maximum continuous - not peak):1.75 A @ 120 V, 0.88 A @ 240 V, 716 BTU/hr
Drives:Drive power consumption varies. Refer to individual drive specifications
Regulatory Compliance

Electromagnetic compatibility:FCC #47, part 15, subpart B, class A; VCCI class A European
Union CE emissions standards; AS/NZS 3548; 1996
(Australia, N.Z.); ICES-003 (Canada)
Safety:UL 1950
CAN/CSA 22.2 No. 950
EN60950
