Hydraflame MK II brochure Front Cover

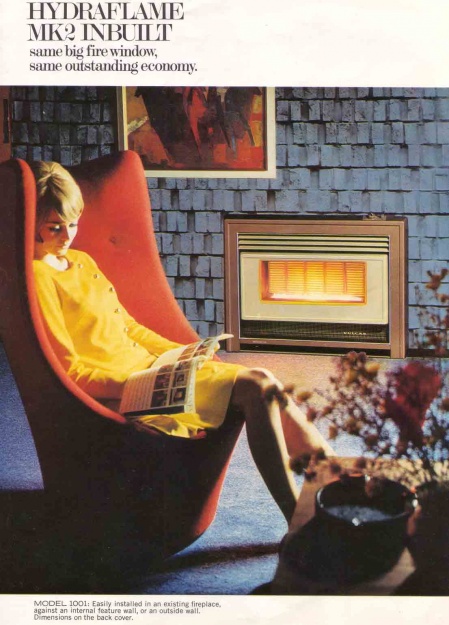

Hydraflame MK II brochure page 1

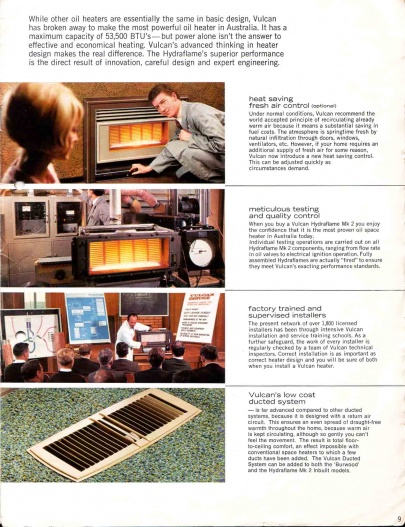

Hydraflame MK II brochure page 2

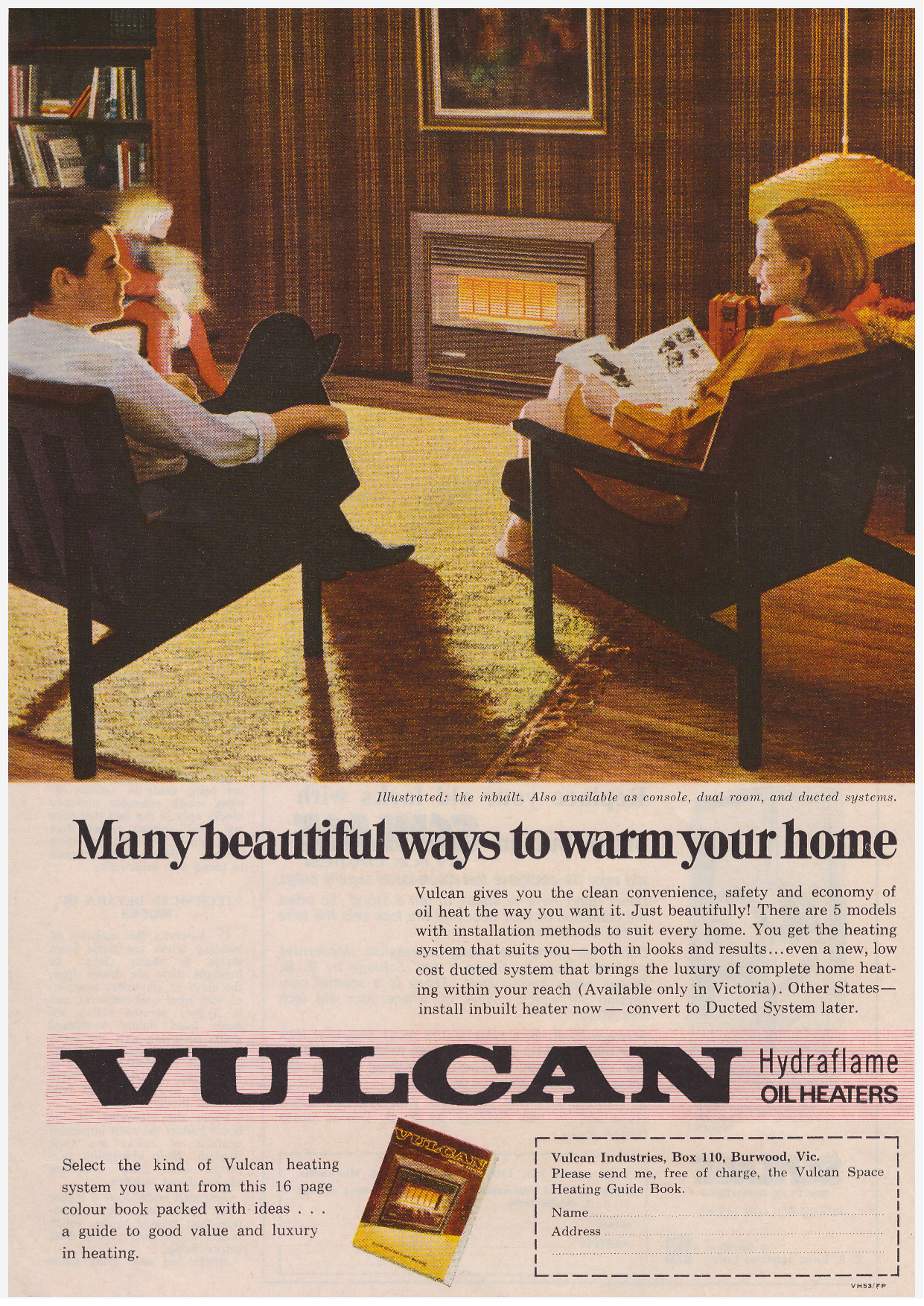

Hydraflame MK I Console ad

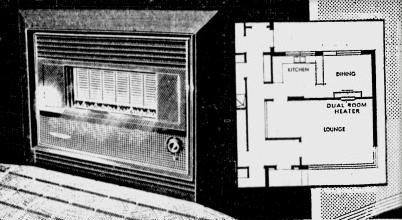

From The Age newspaper, 5th July, 1968

Hydraflame MK I, inbuilt, dual room

From The Age newspaper, 5th July, 1968

MK I Hydraflame console and inbuilt

Hydraflame MK II

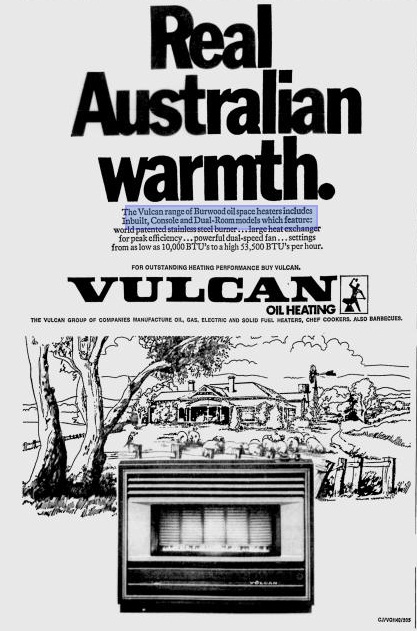

Sydney Morning Herald, April 26th, 1974

Hydraflame MK I inbuilt

Hydraflame MK II fire box close up

Later models included a chromed wire grill across the glass front. It offered some protection from the very hot glass.

Hydraflame MK II inbuilt

Hydraflame MK II air and oil controls

Hydraflame MK II inbuilt, dual room

Main front view

Hydraflame MK II inbuilt, dual room

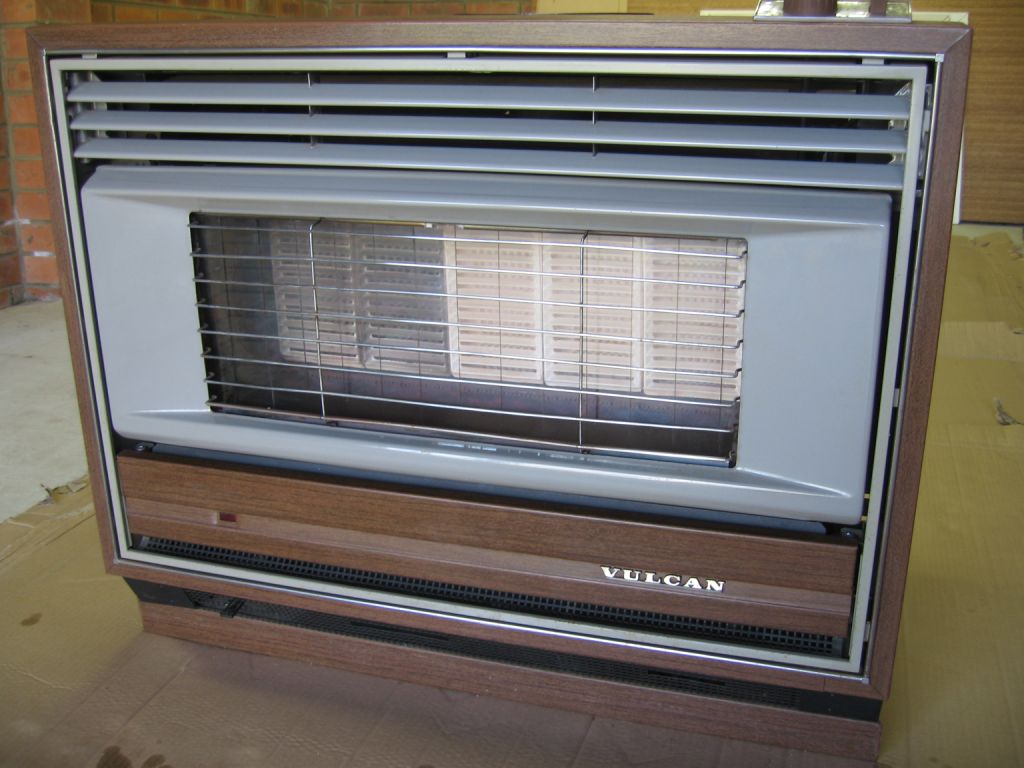

Fire box close up, showing grille

Hydraflame MK II inbuilt, dual room

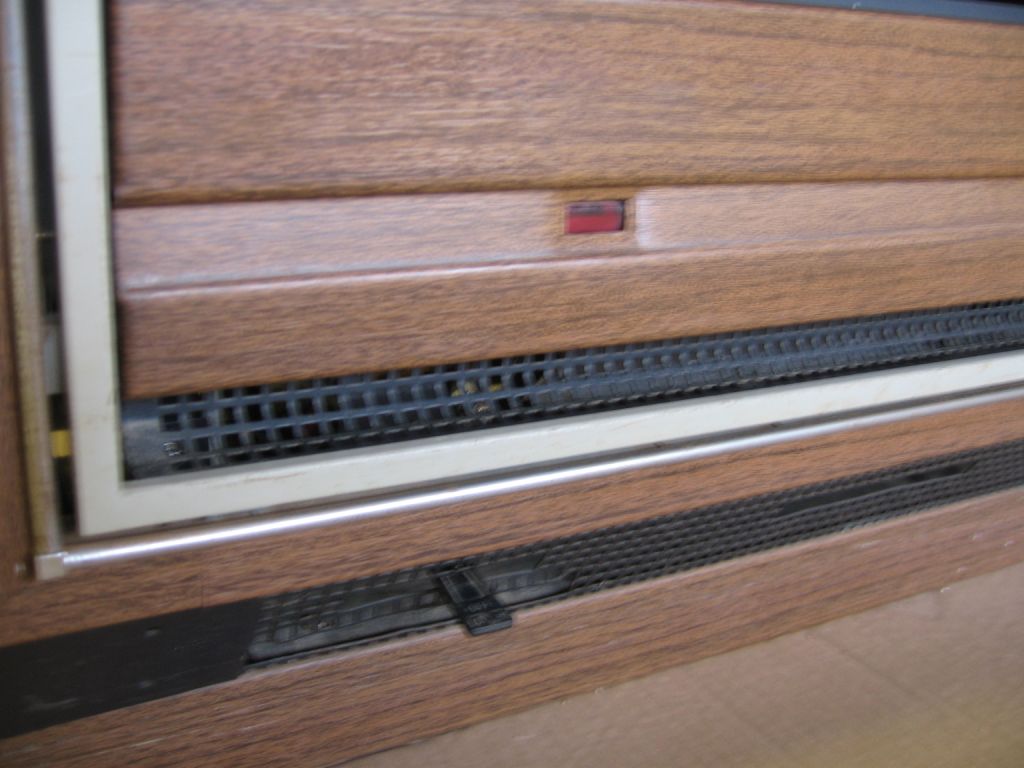

Showing fan switch (lever underneath) and ignition light

Hydraflame MK II inbuilt, dual room

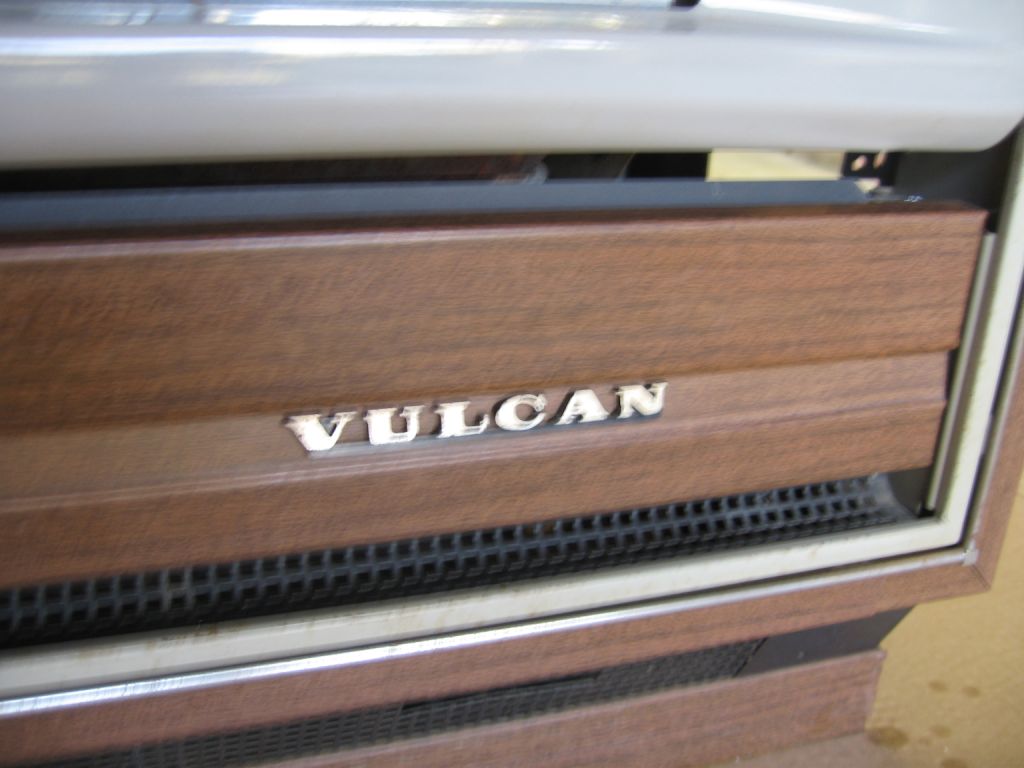

Vulcan badge on lower right panel

Hydraflame MK II inbuilt, dual room

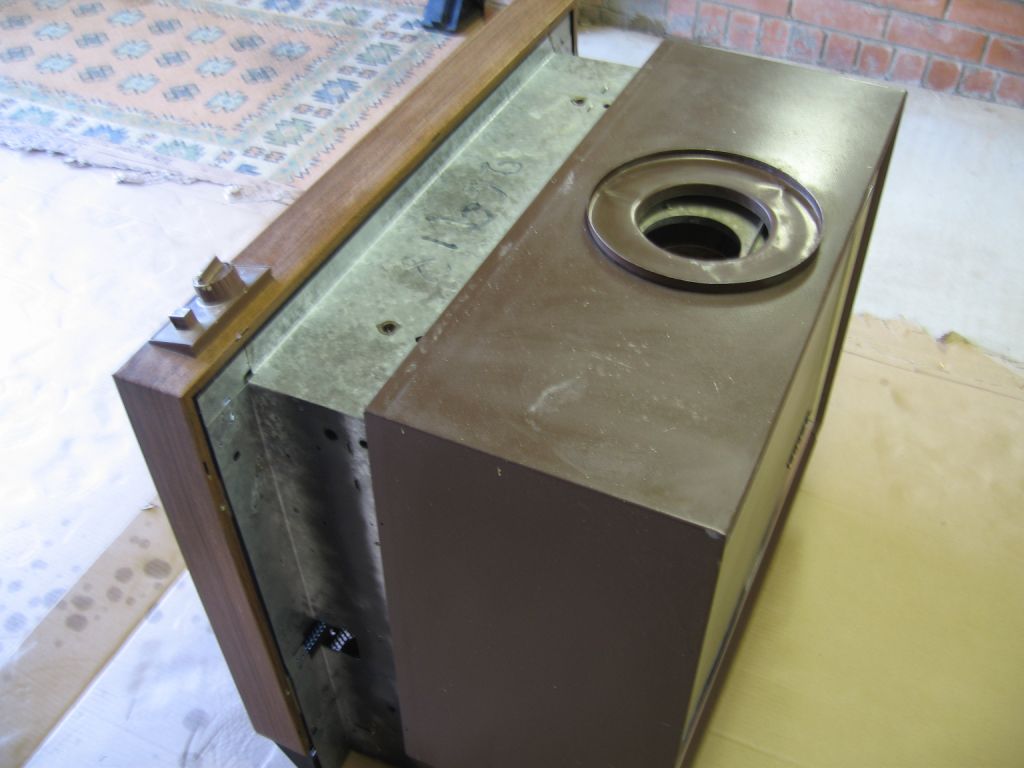

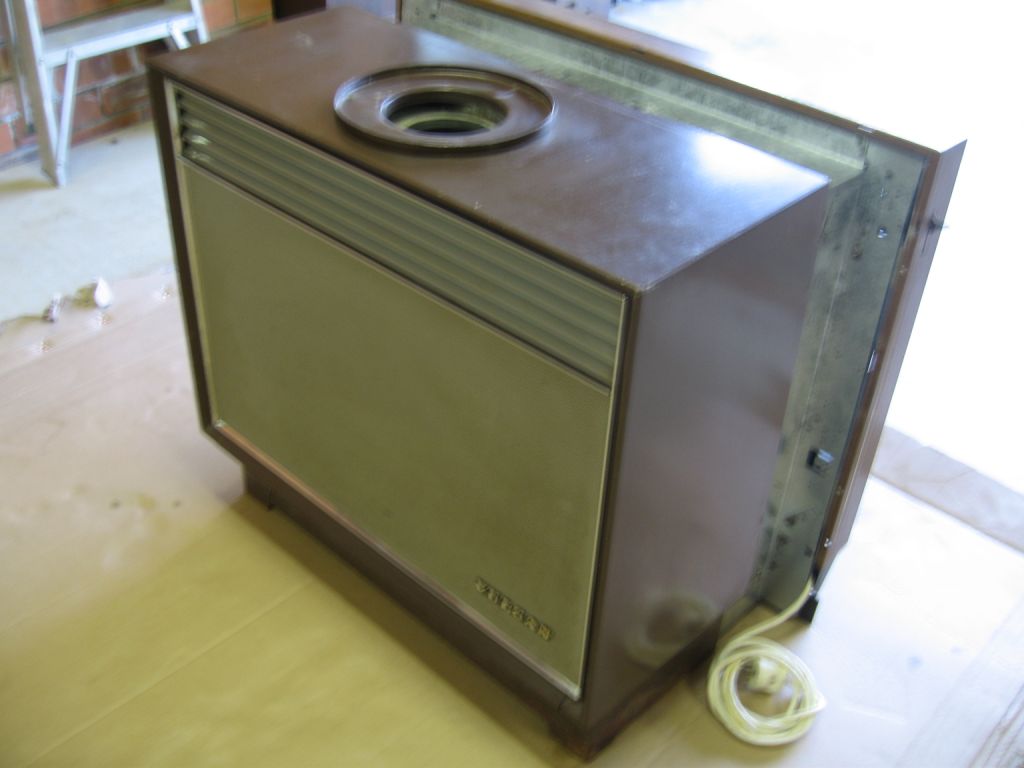

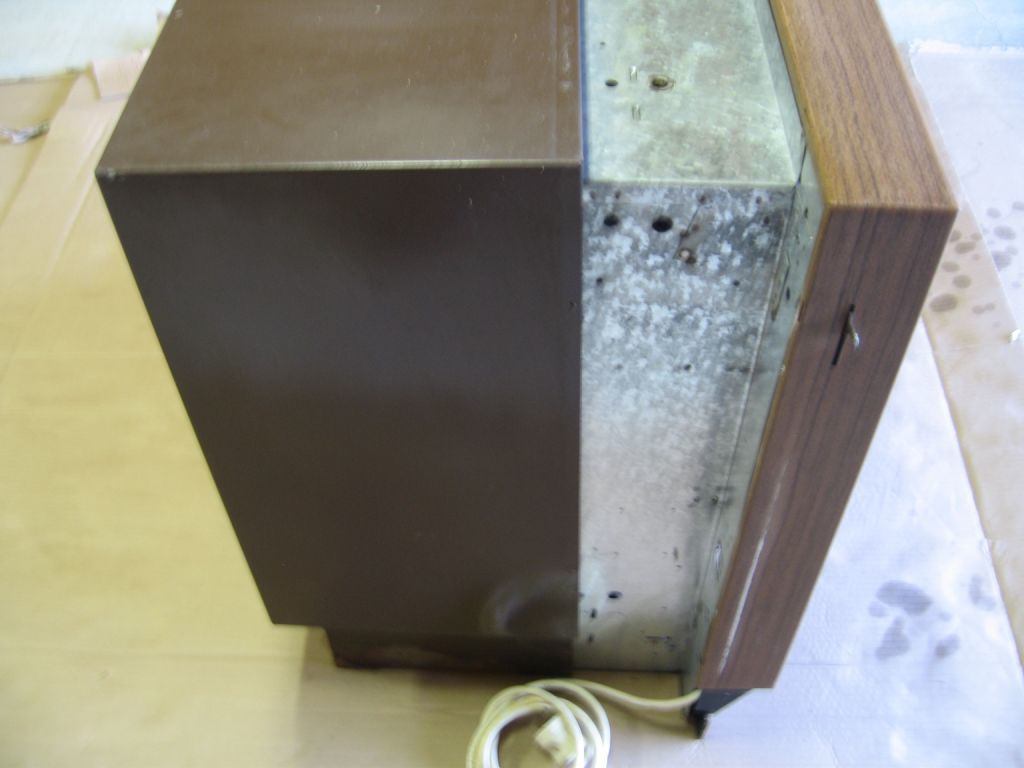

Showing both sides of heater. The gap in the middle is to allow for the thickness of the wall when installed.

Hydraflame MK II inbuilt, dual room

The back (or second) side of a dual room heater.

Hydraflame MK II inbuilt, dual room

Hydraflame MK II inbuilt, dual room

Hydraflame MK II inbuilt, dual room

Lever on the side allowed you to select air flow just to the front or rear, or to both.

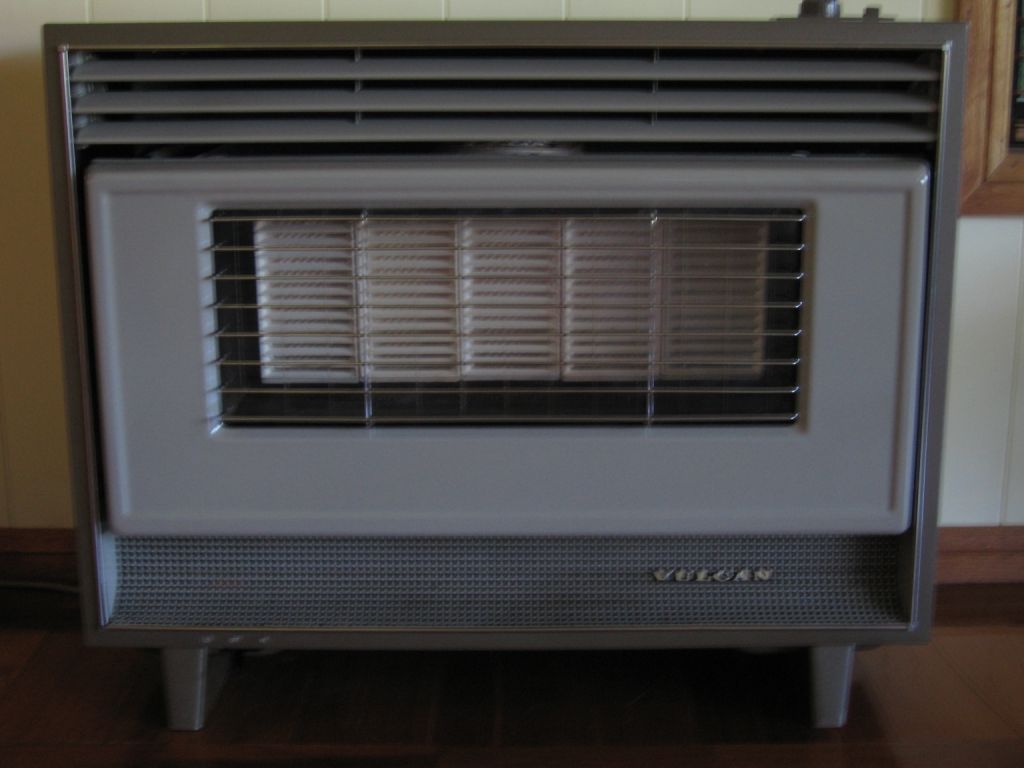

Hydraflame MK II console, model 10-02

Hyrdaflame MK II, Model 10-02

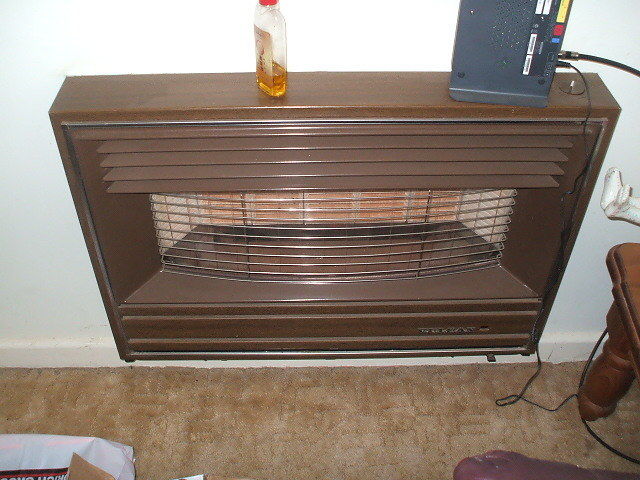

Series 40 with curved front glass.

Series 40 with curved front glass. Inbuilt model.

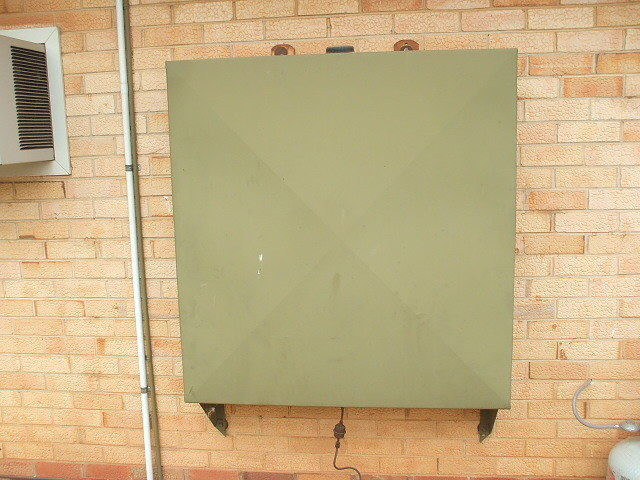

Newer style oil tank, mounted on the wall.

Older style were more rounded and stood on 4 legs.

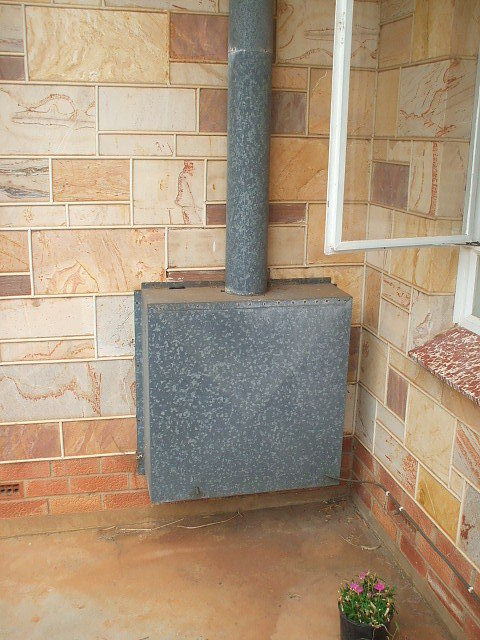

Rear cover and flue

Single room, inbuilt models had this rear box cover at the back, with the chimney extending upwards, usually through the eaves of the house.
